Test Data

Compressive Strength

  • Testing tools:

    Shore Hardness Tester LX-AO, Universal Testing Machine, Weight Scale

  • Compression Test:

    After touching the material, press down 5MM to get the data

Material No.ThicknessWeight
（500 X600 MM）
Compressive Strength
B15-B91515.4±0.3MM715±25G78.4 KGF / 172 LBF
B15-B91815.4±0.3MM540±25G65.37 KGF / 144 LBF
B15-B911315.4±0.3MM370±20G41.05 KGF / 90.5 LBF
B15-B911515.4±0.3MM370±20G35.16 KGF / 77.5 LBF

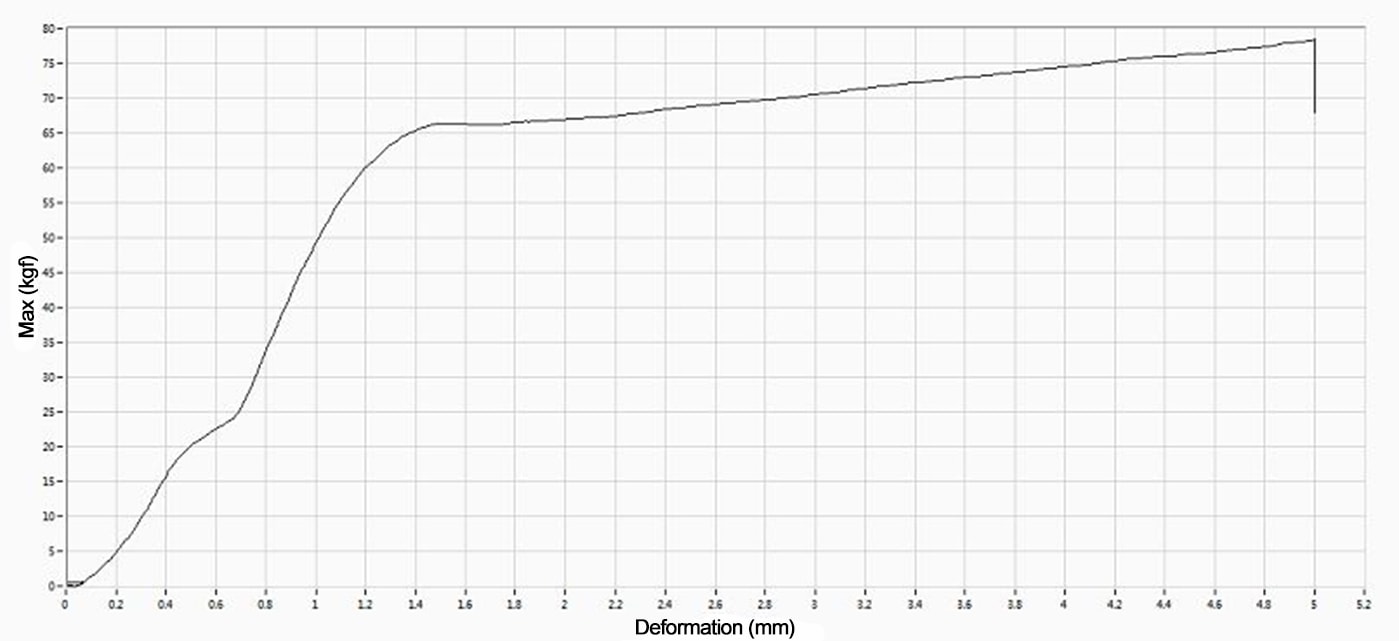

B15-B915

  • Max (kgf): 78.4
  • Deformation at the point of maximum force(mm): 5

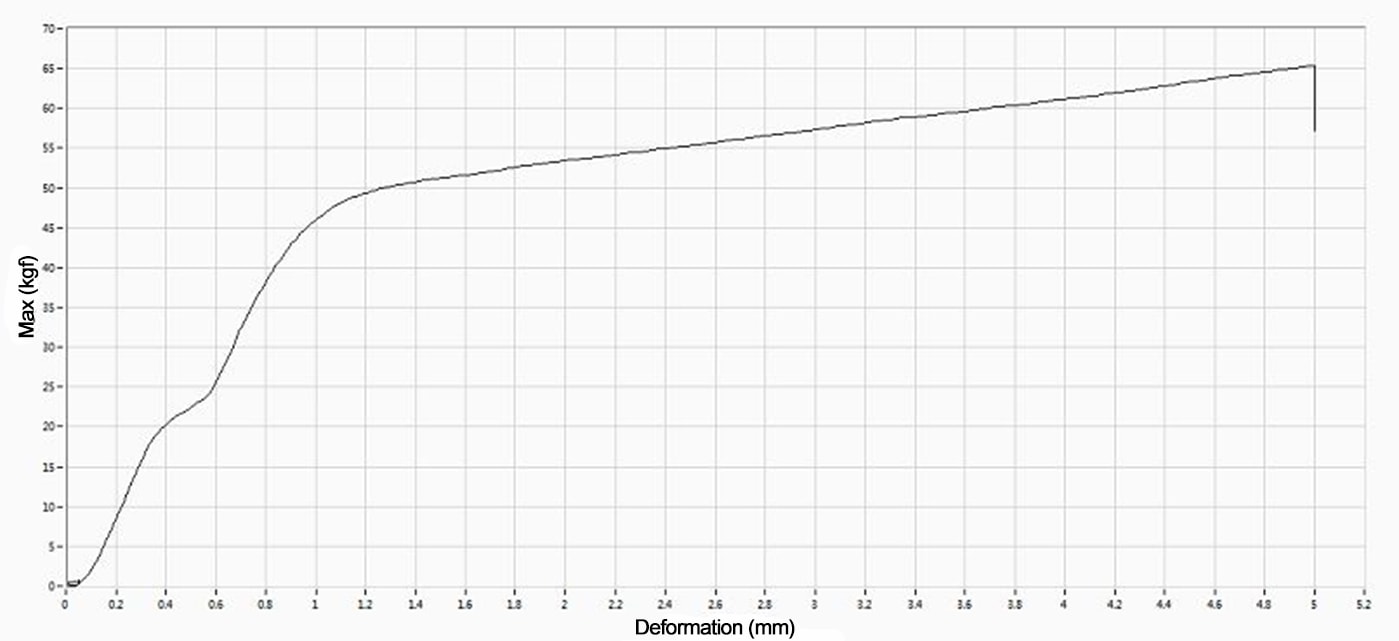

B15-B918

  • Max (kgf): 65.37
  • Deformation at the point of maximum force(mm): 5

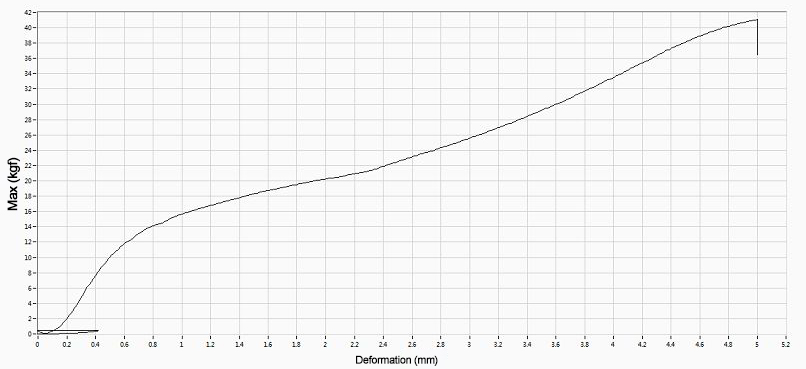

B15-9113

  • Max (kgf): 41.05
  • Deformation at the point of maximum force(mm): 5

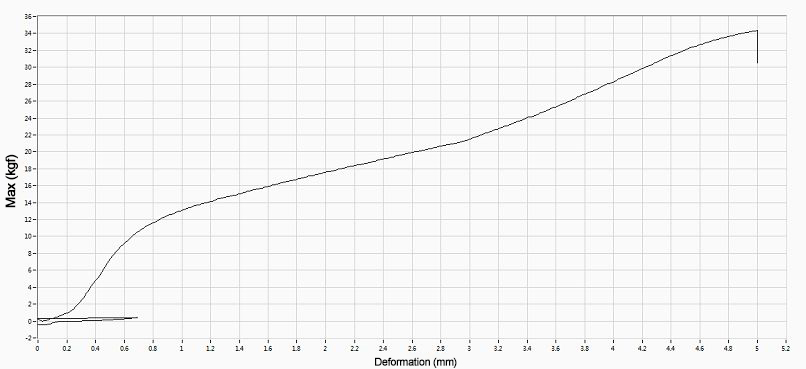

B15-9115

  • Max (kgf): 35.16
  • Deformation at the point of maximum force(mm): 5
